Home > Products > Soft starter > QNZ-100A DC72V Soft starter contactor

QNZ-100A DC72V Soft starter contactor

QNZ-100A DC72V Soft starter contactor

    Brand: QUANNING
    Transportation: Ocean
    Place of Origin: NANJING ,CHINA
    Certificate: CCC
    Port: SHANGHAI

Basic Info

Model No.: QNZ-100A DC72V

Product Description

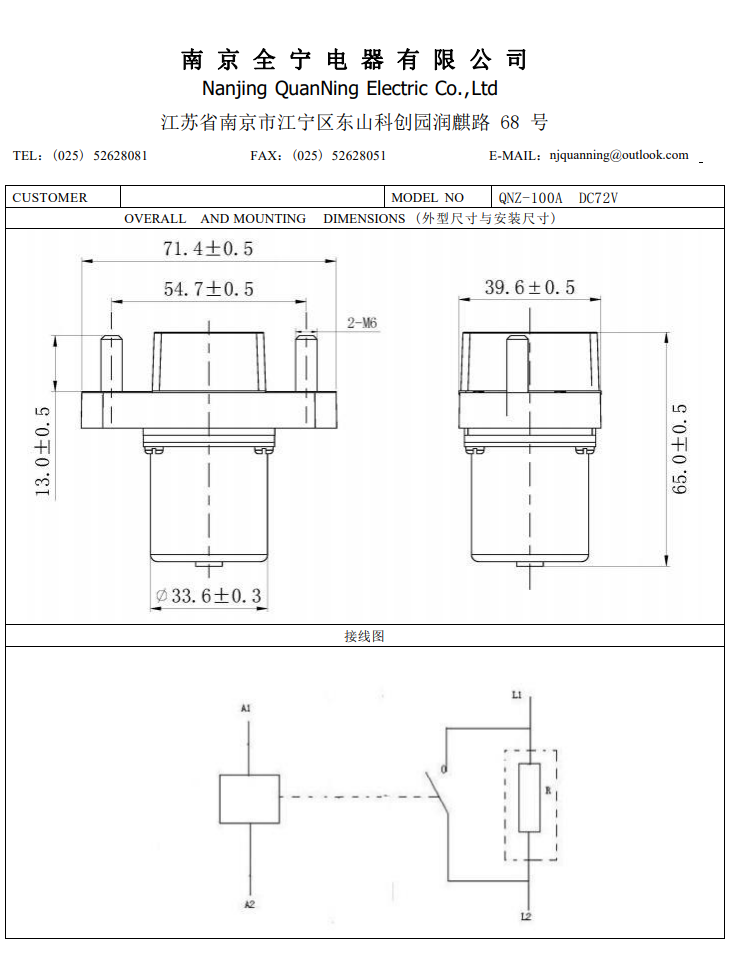

1


Nanjing QuanNing Electric Co.,Ltd


Application: Soft starter battery driven vehicle, traction locomotive, uninterruptible power supply syste

Standards: IEC60947-4 GB14048.1 GB14048.4 JB2286-78JB3974-85YD/T585-92YD/512-92

CertificationCCC

Specifications

CUSTOMER


MODEL NO

QNZ-100A DC72V

ELECTRICAL SPECIFIC ATION

PRIMARY

Ambient Temperature

-25℃~+85℃

Vibration

1~50Hz 25±1mm

Height above sea level

3000m

Contact Form

1NO

Rated working voltage

DC48V

DC- 1 Rated operating current Ie

100A

Contact resistance mΩ

0.6mΩ

Conventional thermat current Ith A

100A

Use frequencu h- 1

600

Insulation Resistance

1500V

Initial

Strength

Dielectric

Between Contacts and Coil

3500V/1Min No breakdown or flashover And leakage current ≤ 5mA


Between Open Contact

3500V/1Min No breakdown or flashover And leakage current ≤ 5mA

Electrical Life (DC- 1)

5×104

Elevatory temperature

Coil(Rated control voltage)

85K

Terminal blocks(Rated operating current)

70K

Outer Shell

70K

magnet wire

Temperature Resistance

180

Insulation grade

H

Pressure resistance (paint layer against ground)

1000V/ 1Min








COLLDATE (AT 20)

RATED VOLTAGE (V DC)

Starting Current

(A)

Holding Current

(A)

PULL IN CURRENT RANGE (V DC)

DROP VOLTAGE RANGE (V DC)

PULL IN POWER

(VA)

72

0. 1

0.07

61.2-79.2

7.2-43.2

8

Specifications can be made according to customer’s order.

2


NanJing QUANNING electric Co.,Ltd

 Nanjing Quanning Electric Appliance Co., Ltd. was founded on January 18, 2010, located in Nanjing, known as one of the four ancient capitals and famous historical and cultural cities.
Nanjing Quanning electric appliance co., LTD is a professional supplier of contactor and relay. Quanning`s long term commitments are to producing qualified high and low voltage electrical components and to complete sets of equipment design and manufacturing technology. Quanning aims to make the employees proud and customers satisfied, in line with the development of the company purpose. Quanning advocates the business discipline of people-oriented ,technology first,and devotes to becoming an indispensable part of electrical appliance industry.
